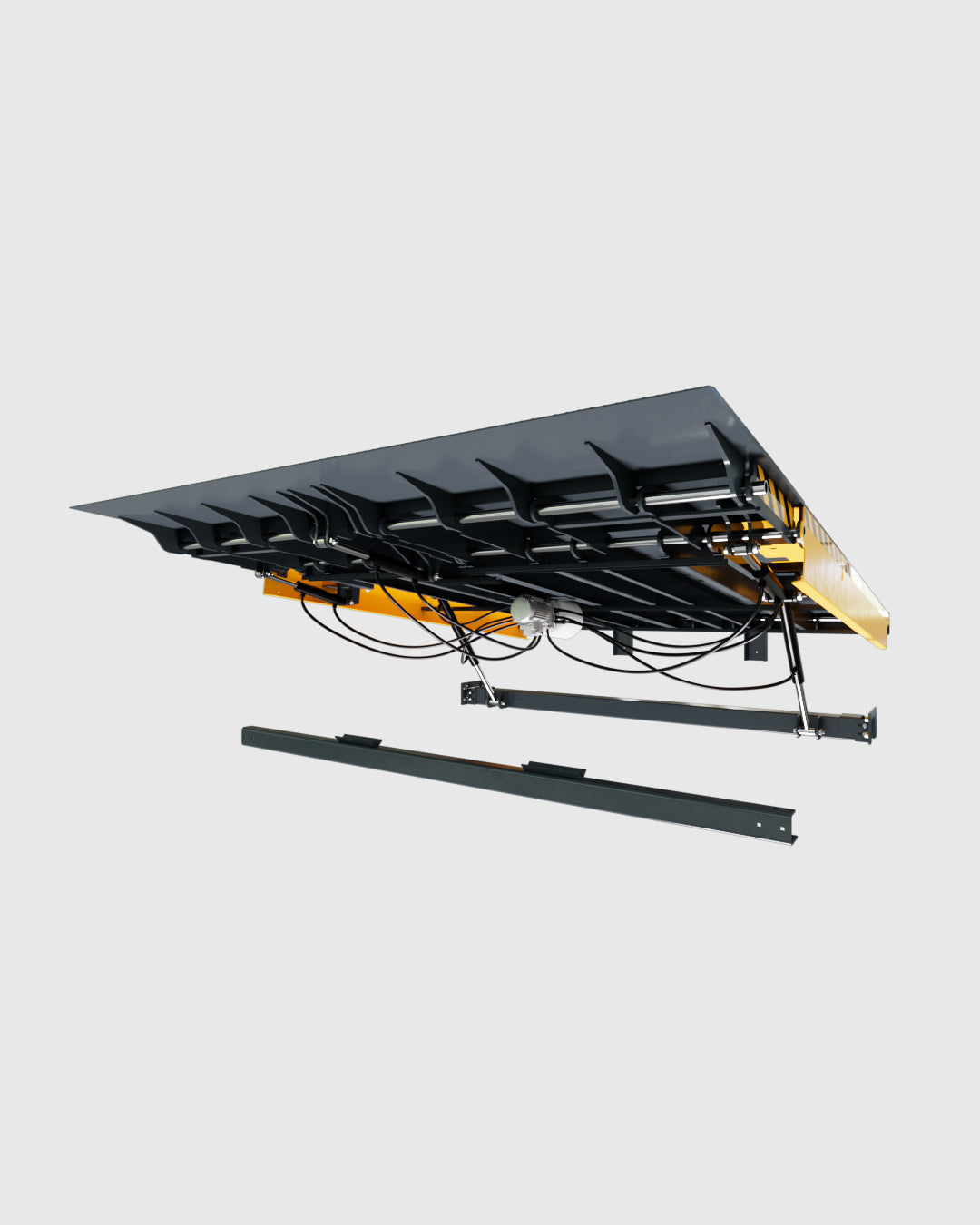

BAG.DS – DOUBLE HINGE ELECTROHYDRAULIC STEEL DOCK LEVELER

Name: BAG.DS – DOUBLE HINGE ELECTROHYDRAULIC STEEL DOCK LEVELER
Brand: TM PEDANE
Availability: InStock

The innovative BAG.DS double hinge galvanized steel dock leveller is engineered for precast pit.

The revolutionary system with double hinge allows a long extension (like telescopic lip docks), with no bump/stair between plate and lip, an import issue with small wheeled vehicles, this way the ramp can be equipped with su. . .

Collections: ELECTROHYDRAULIC DOCK LEVELERS, LOADING BAYS, LOADING RAMPS

Technical Features

NOMINAL LENGTH: 1900/2400/2900mm + lip

NOMINAL WITDH: 2000/2250mm (custom width on request)

CAPACITY: 60KN (6T)

PLATE: 6mm thick steel sheet painted with epoxy powder

MAX CONCENTRATED LOAD: 1.3 N/mm²

HANDLING: Hydraulic: 2 single-acting plate lifting pistons + 3 double-acting joint+lip lifting pistons

NOMINAL MOTOR POWER: 0,75 KW

CONTROL UNIT: 380V three-phase 50Hz

IP CLASS CONTROL UNIT: IP54

ALLOWED TYPE OF OIL: Hydraulic 46HVI (-20°C +60°C)

ELECTROVALVES: 24 V/DC 18W S1

SAFETY: Pachute valves on pistons, telescopic foot guard plates
